PERTRONIX 45001 FLAME-THROWER II COIL 45,000 VOLT 0.6 OHM CHROME

PERTRONIX 45001 FLAME-THROWER II COIL 45,000 VOLT 0.6 OHM CHROME

Part No.: 45001

Price: $67.95
Quantity:

PERTRONIX 45001 FLAME-THROWER II COIL 45,000 VOLT 0.6 OHM CHROME Product Description:

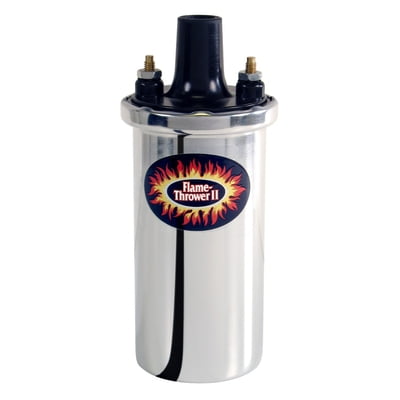

Chrome Flame-Thrower Ignition Coil

45,000 V / 0.6 Ohm, Round, Oil Filled

Upgrade from your stock coil to something with more wallop--like a PerTronix Flame-Thrower. Flame-Thrower coils deliver up to 45,000 V of spark energy to your plugs for fuller, more complete combustion.

For use with the PerTronix Ignitor II ignition. Can also be used with other induction ignition systems.



Brand PerTronix
Part Number 45001
Part Type Ingnition Coil
Coil Wire Attachment Female/Socket
Coil Style Canister
Primary Resistance 0.6 ohms
Coil Internal Construction Oil-filled
Coil Color Chrome
Maximum Voltage 45,000 Volts
Turns Ratio 108:1
Secondary Resistance 10.0K Ohms
Inductance 7.2 mH
Peak Current 7.2 Amps
Spark Duration 1.5 mS
Mounting Bracket Included No
Coil Wire Included No
Ballast Resister Included No
Coil Shape Round
Diameter (in.) 2.15"
Height (in.) 6"




While it's the perfect coil to go with the PerTronix Ignitor breakerless ignition, Flame-Thrower canister coils can benefit virtually any distributor type inductive system. Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy. These coils are internally resisted so they are compatible with many ignition systems.

Oil filled coils offer great heat control for street driven vehicles, while epoxy filled coils provide superior winding support for high vibration environments in offroad vehicles and boats.

Features

  • 28,000, 40,000, or 45,000 volts
  • Available chrome plated or black for that "stock look"
  • For use with inductive ignition systems
  • .6 to 3.0 Ohm primary resistance values available.
  • Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-10)



 https://kmjent.com/ebay/PTX/coil_info_chart.jpg




All PerTronix products are guaranteed to the original purchaser, to be free of defects in materials and workmanship.
Ignitor, Ignitor II, Ignitor III - 30 months.
Industrial Distributor - 90 days mechanical / 30 months Ignitor
Flame-Thrower Coils - 90 days
Flame-Thrower Spark Plug Wires - Lifetime
Flame-Thrower HEI Distributors and Component Parts - Limited 1 Year
Flame-Thrower Plug n? Play Billet Distributors - 1 Year Mechanical / 30 months module
Second Strike & Digital Rev Limiter - Limited 1 Year
***** LIMITED WARRANTY *****
PerTronix, Inc. warrants to the original Purchaser that it's products shall be free from defects in material and workmanship for a period, as specified above, from the first day of use in the Purchaser's engine.
If within the period of the foregoing warranty PerTronix finds, after inspection, that the product or any component thereof is defective, PerTronix will, at it's option, repair such product or component or replace them with identical or similar parts PROVIDED that within such period Purchaser:
  1. Promptly notifies PerTronix in writing of such defect.
  2. Delivers the defective product or component to PerTronix (Attn: Warranty) with proof of purchase date; and
  3. Has installed and used the product in a normal and proper manner consistent with PerTronix printed instructions.  The foregoing limited warranty is exclusive and in lieu of all other warranties, whether express or implied, including any implied warranty or merchantability or fitness for a particular purpose.  The furnishing of a repair or replacement components shall constitute the sole remedy of purchaser and the sole liability of PerTronix whether on warranty, contract or for negligence, and in no event will PerTronix be liable for money damages whether direct or consequential.

Product Reviews Write A Review

Comments

No reviews yet, be the first to review this product!
