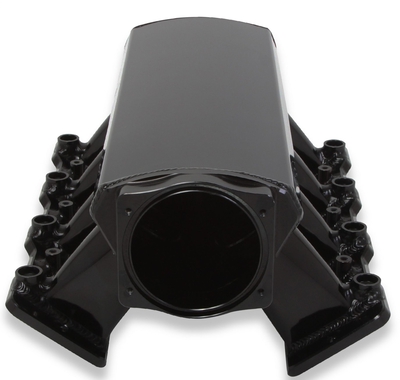

Fabricated Aluminum LS Intake Manifold 102MM Product Description:

Designed for LS1, LS2 & LS6 cylinder heads with cathedral intake ports. Made from 6061 aluminum and TIG welded for strength and durability to suit most high performance applications from naturally aspirated setups to forced induction. Features a 102mm GM 4-bolt throttle body mounting flange, threaded vacuum ports and an LS3 style MAP sensor port. Includes billet fuel rails, steel braided crossover fuel line, vacuum port fittings, mounting hardware and o-ring gaskets (manifold and throttle body).

FEATURES

• Designed For LS1/LS2/LS6 Cathedral Port Cylinder Heads
• 102mm Throttle Body Opening (Accepts 92mm & 102mm Throttle Bodies)
• Intake Height: 7.25″ Front, 7.50″ Rear
• Intake Runner Length: 1.75″ x 2.15″ x 4.00″ Long
• 0.958″ Intake Flange Thickness
• Works With LS1 & LS6 Style Fuel Injectors
• -8AN ORB Fuel Rail Fittings
• Available in Gloss Black powder-coat Finish and Plain Silver Aluminum Finish

IMPORTANT NOTES

• THROTTLE BODY NOT INCLUDED
• DESIGNED TO WORK WITH STOCK CATHEDRAL PORT LS HEADS WITH OEM PORT LOCATIONS
• IF USING AFTERMARKET HEADS, CONSULT WITH HEAD MANUFACTURER TO ENSURE INTAKE MANIFOLD FITMENT
