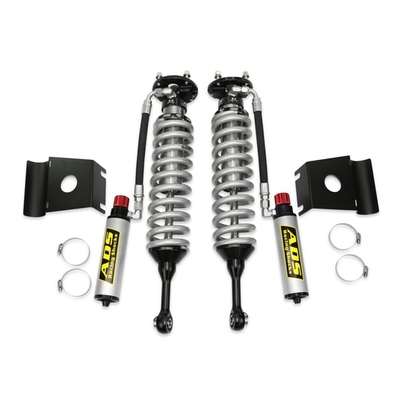

Upgrade the control arms and shocks of your 3rd or 4th generation Toyota Tacoma with our line of suspension components and Direct Fit Race shocks. Choose from front upper and rear (upper and lower) control arms made from heavy-duty tubular DOM steel or premium billet, along with adjustable and non-adjustable options of our popular Direct Fit Race shocks. Front upper control arms accommodate lifts up to 4-inches, correct camber and caster for a smoother ride, and are fully rebuildable, making either option a sustainable and long-lasting upgrade for your Tacoma! ADS is also proud to offer our all-new Direct Fit Race Series shocks for Tacoma. This shock line is engineered to provide maximum stability and control in a bolt-on upgrade that is built to withstand extreme conditions and heavy use. Benefit from the durability and corrosion resistance of zinc plated, steel shock bodies, with a crystal clear Cerakote® finish. The shock features black anodized billet aluminum top and bottom caps, along with hardchrome plated steel shafts for superior corrosion resistance. Its shock eye mounts include machined rod ends with high-strength spherical bearings to boost performance. Everything about these shocks are premium!
Features:
- Offered for both 05-23 and 24+ in 4 different configurations
- Large Bore 2.5-inch shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
- On the adjustable versions, comes with a billet, knurled and red anodized compression adjuster knob - Competition-inspired performance in an easy to install package
- Improved road manners and ride quality on and offroad
- Direct fit – No cutting, drilling, or welding required
Specs
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Rebound | Yes |
| Adjustable Reservoir | Yes |
| Adjustable Ride Height | Yes |
| Body Color | Silver |
| Body Diameter | 2.5 IN |
| Body Finish | Electric zinc plated w/ Ceramic coat |
| Body Material | Steel |
| Boot Included | No |
| Brand | ADS Racing Shocks |
| California Proposition 65 | No |
| Category | Suspension |
| Collapsed Length | 19.37 IN |
| Drivetrain | 2WD/4WD |
| Emission Code | 6 |
| Extended Length | 25.48 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hose Length | 13 IN |
| Hose Material | Rubber |
| Hose Outer Diameter | 0.875 IN |
| Includes Bump Stop | Yes |
| Internal Construction Type | Mono tube |
| Internal Rebound Bumper | No |
| Internal Rebound Spring | No |
| Lift Range | 1.5-3 |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Part Type | Suspension Shock Absorber |
| Position | Front |
| Product Type | Coilover Shock |
| Quantity | Sold as a pair |
| Requires UCA | Yes |
| Reservoir Color | Silver |
| Reservoir Diameter | 2.5 IN |
| Reservoir Finish | Powdercoat |
| Reservoir Length | 8 IN |
| Reservoir Material | 6061 Aluminum |
| Reservoir Type | Remote |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Hard-chrome plated steel |
| Shock Travel | 6.1 IN |
| Spring Color | Silver |
| Spring Finish | Powdercoated |
| Spring Included | Yes |
| Spring Material | Steel |
| Spring Rate (lb/in) | 450 PPI |
| Sub Category | Shocks and Struts |
| Travel Length | 6.1 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Progressive |
| Weight | 62 LB |
| UPC | 090127868584 |
| Part Number | 250-TT24F-A45 |
