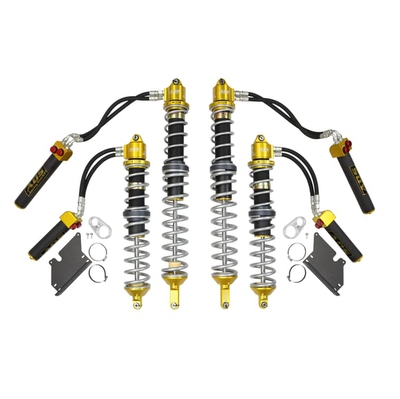

MBR technology, or Multi-Stage Bypass Ring, embodies a genuine multi-stage bypass system where each zone is independently adjustable via a positive stop helix system. This design ensures ample flow, similar to 7-tube External bypasses on 16" stroke variations, and internal free bleed ports enable tuners to optimize the damping curve for specific vehicle needs. A true top-out zone provides both mechanical and hydraulic damping, guarding against shock damage during full extension in harsh conditions, although the use of limit straps is recommended for racing and severe use. Additionally, the 4-way adjustable reservoir allows independent high and low-speed adjustments for compression and rebound events. A dual hose system establishes a genuine recirculating fluid path to the reservoir, maximizing fluid cooling with internal diverters ensuring fluid flow across the entire shock body for enhanced cooling efficiency. Each unit undergoes vacuum bleeding and features full synthetic fluid to reduce fade and extend product life. Furthermore, large 2.5" reservoirs increase fluid capacity to aid in cooling, while high-temperature seals prevent blow-by, ensuring consistent performance across a wide temperature range. Threaded end caps prevent contamination from external sources. Finally, a 3-stage urethane seal package delivers unmatched sealing performance, suitable for extreme cold snow-ridden trails and scorching deserts alike.
Specs
Air Adjustable | No |
Bladder Heavy Duty Crimping Rings Included | No |
Bladder Material | N/A |
Bladder Sleeve(s) Included | No |
Bladder(s) Included | No |
Brand | ADS Racing Shocks |
Bushing Color | No |
Bushing Inside Diameter | 5/8 IN |
Bushing Material | Heim |
Bushing Outside Diameter | 1 3/16 IN |
Category | Suspension |
Coil Spring Color | Silver |
Coil Spring Insulator(s) Included | Yes |
Coil Spring Material | Mild Steel |
Coil Spring Relaxed Length | N/A |
Emission Code | 6 |
Front Shocks Compressed Length | 21.48 IN |
Front Shocks Relaxed Length | 31.8 IN |
Grade Type | Performance |
Link Bolt Bushing Color | N/A |
Link Bolt Length | N/A |
Link Bolt Thread Diameter | N/A |
Part Type | Suspension Kit |
Product Type | UTV Coilover Kit |
Qty | Sold with front pair and rear pair |
Rear Shocks Compressed Length | 27 IN |
Rear Shocks Relaxed Length | 41.5 IN |
Springs Included | Yes |
Strut Mount Insulator(s) Included | No |
Sub Category | Suspension, Springs and Related Components |
Suspension Type | Spring |
UPC | 090127839218 |
Part Number | 300-MBR00-4X3 |
