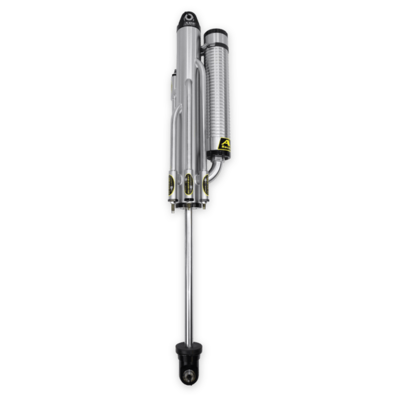

ADS Racing Shocks external bypass options are designed around racing first and foremost, performance reliability and longevity are primary concerns when determining flow rates and zone placement. Multiple zones allow end users to dial in the damping curve to driver and chassis type. Enhanced flow in critical areas reduces heat buildup and harshness, these reductions in restriction amplify traction potential and driver control. Large capacity reservoirs aid in cooling as well as reducing pressure gain in the system. Large diameter shafts increase strength for extreme applications and stand up to the abuse of racing time and time again. All these features together deliver a bullet proof bypass shock that is guaranteed to perform on your race car or weekend warrior.
Features:
- Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
- Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.
- Shaeffer’s high grade temperature stable synthetic hydraulic fluid
- Black anodized billet aluminum top and bottom caps
- Fully rebuildable
- Hard-chrome plated steel shock shafts for superior corrosion resistance
- Made in America
Specs
Brand | ADS Racing Shocks |
Category | Suspension |
Comp. | 27.28 IN |
Diameter | 4 |
Emission Code | 6 |
Ext. | 43.36 IN |
Length | 16.08 IN |
Mounting Width and Bolt Size | 1.5" x .500" |
Part Type | Suspension Shock Absorber |
Position | 27.28 |
Product Type | 4 |
Qty | Sold individually |
Shock Type | 43.36 |
Stroke | 1.5 x .500 IN |
Sub Category | Shocks and Struts |
UPC | 090127839843 |
Part Number | 400-BP716-0R1 |
