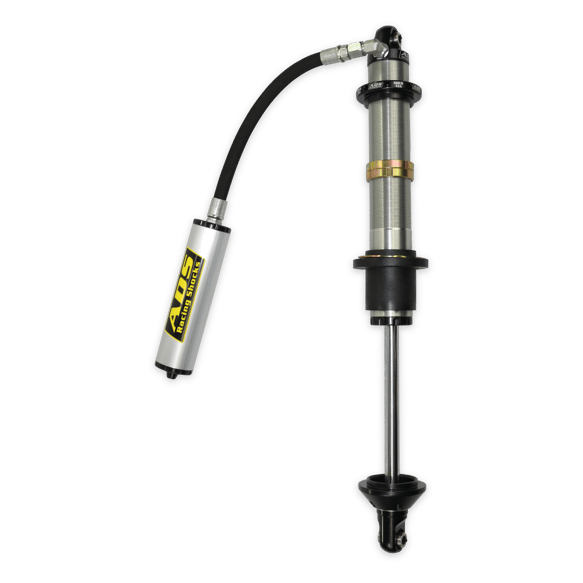

ADS Race Coilover Shock 3.0 in. x 16 in. Stroke Coil-over Race Shock with Remote Reservoir 90 Deg Fitting w/ Compression Adjustment

ADS Race Coilover Shock 3.0 in. x 16 in. Stroke Coil-over Race Shock with Remote Reservoir 90 Deg Fitting w/ Compression Adjustment

Part No.: 300-COR16-AR9

Price: $1,686.95
Quantity:


ADS Race Coilover Shock 3.0 in. x 16 in. Stroke Coil-over Race Shock with Remote Reservoir 90 Deg Fitting w/ Compression AdjustmentADS Race Coilover Shock 3.0 in. x 16 in. Stroke Coil-over Race Shock with Remote Reservoir 90 Deg Fitting w/ Compression Adjustment

ADS Race Coilover Shock 3.0 in. x 16 in. Stroke Coil-over Race Shock with Remote Reservoir 90 Deg Fitting w/ Compression Adjustment Product Description:

Overview
ADS Racing Shocks coil overs were born from the years of desert racing experience our founders have accumulated. Performance, reliability and longevity were the primary concerns when ADS sent out to develop its coil overs, and we have not strayed from that initial thought process. Years of racing will teach you that ,if something can go wrong it will go wrong. With that mindset in place, eliminating the possibility of failure was the primary goal. Every single component on an ADS Racing Shock has a purpose from our screw in end cap reservoirs to the captive lower spring perch ensure that we have done everything to eliminate failure. Extended threaded bodies allow for larger range of adjustment on dual rate spring setups. Heavy duty adjustment collars prevent thread skipping when adjusting preload or cross over engagement. Truncated threads prevent dirt and debris from jamming into hardware. All these features add up to a coil over that is not only as tough as the desert it was born in but allows for ease of adjustment and use for years to come.

Features:

  • Large Bore 3.0 shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
  • Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.
  • Black anodized billet aluminum top and bottom caps
  • Hard-chrome plated steel shock shafts for superior corrosion resistance

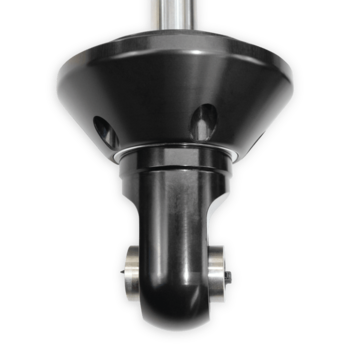

  • Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
  • Shaeffer’s high grade temperature stable synthetic hydraulic fluid
  • Fully rebuildable
  • Made in America
Specs
Adjustable Reservoir Yes
Brand ADS Racing Shocks
Category Suspension
Comp. 26.85 IN
Emission Code 6
Ext. 42.86 IN
Mounting Width and Bolt Size 1.5" x .500"
Part Type Suspension Shock Absorber and Coil Spring Assembly
Product Type Coilover Shock
Qty Sold individually
Stroke 16.01 IN
Sub Category Shocks and Struts
UPC 090127839058
Part Number 300-COR16-AR9
