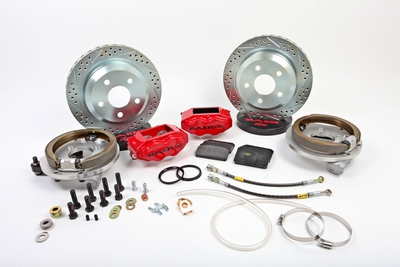

This system features the S4 4-piston caliper mounted to a 12", 1 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses are also included. The 12” SS4 fits most 16” or larger wheels.
Features:
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slot, Drilled, Zinc-Plate Rotor
About Baer Brakes
Specs
| Axle | Rear |
| Axle Flange | Ford 8.8" |
| Brand | Baer Brakes |
| Caliper | S4 |
| Caliper Color | Silver |
| Disc Brake Caliper (Rear) Piston Quantity | 4 |
| Disc Brake Caliper (Rear) Type | Floating |
| Disc Brake Pad FMSI Number | DR1-C |
| Disc Brake Rotor (Rear) Construction | Vented |
| Disc Brake Rotor (Rear) Outside Diameter | 12.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Includes Park Brake | Yes |
| Includes Park Brake Cables | No |
| Lug Count | 4 Lug |
| Min Wheel Dia (verify using template) | 16 IN |
| Product Line | 12 Inch SS4 |
| Product Type | 12 Inch SS4 Rear Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.020 IN |
| Rotor Type | 1-Piece |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits Ford 8.8" C-clip rear with 2.5" axle standoff |
| Template | S113E |
| Title | SS4 Brake System Rear |
| Wheel Lug/Bolt Pattern | 4x4.25 |
| UPC | 844165028055 |
| Part Number | 4262256S |
