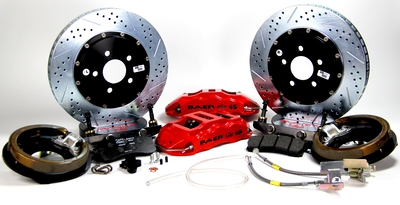

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 15", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Brackets and hardware are also included. The 15” Extreme+ fits most 19” or larger wheels.
Features:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
About Baer Brakes
Specs
| Applications | Ford F150 09-11 |
| Ford Raptor 10-11 |
| Axle | Rear |
| Brand | Baer Brakes |
| Caliper | 6S |
| Caliper Color | Red |
| Disc Brake Caliper (Rear) Piston Quantity | 6 |
| Disc Brake Caliper (Rear) Type | Floating |
| Disc Brake Pad FMSI Number | D1247 |
| Disc Brake Rotor (Rear) Construction | Vented |
| Disc Brake Rotor (Rear) Outside Diameter | 15.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | 2WD |
| 4WD |
| Grade Type | Performance |
| Hose Material | Re-uses OE Hoses |
| Includes Park Brake | Yes |
| Includes Park Brake Cables | No, Re-uses OE |
| Lug Count | 6 Lug |
| Min Wheel Dia (verify using template) | 19 IN |
| Product Line | 15 Inch Extreme+ |
| Product Type | 15 Inch Extreme+ Rear Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.250 IN |
| Rotor Type | 2-Piece |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with 2009-2011 F-150 OE rear end. NOTE: Does NOT fit OE Raptor Wheels |
| Template | N125U |
| Title | Extreme+ Brake System Rear |
| Wheel Lug/Bolt Pattern | 6x135mm |
| UPC | 844165049852 |
| Part Number | 4262691R |
