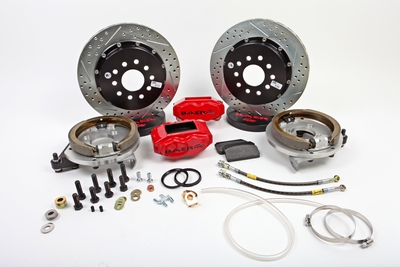

This system features the 4-piston, S4 caliper mounted to a 13", 2 piece slot, drill, zinc-plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1-C pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13" SS4+ fits most 17” or larger wheels.
Features:
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
-
Specs
| Applications | GM F-Body 82-92 |
| Axle | Rear |
| Brand | Baer Brakes |
| Caliper | S4 |
| Caliper Color | Black |
| Disc Brake Caliper (Rear) Piston Quantity | 4 |
| Disc Brake Caliper (Rear) Type | Floating |
| Disc Brake Pad FMSI Number | DR1-C |
| Disc Brake Rotor (Rear) Construction | Vented |
| Disc Brake Rotor (Rear) Outside Diameter | 13.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/OE Saginaw 10 Bolt C-clip (BIH) Drum Brake Housing End |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Includes Park Brake | Yes |
| Includes Park Brake Cables | Yes |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17 IN |
| Product Line | 13 Inch SS4+ |
| Product Type | 13 Inch SS4+ Rear Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | .810 IN |
| Rotor Type | 2-Piece |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits stock Saginaw 10 bolt C-clip rear end w/OE drum brakes |
| Template | S135H |
| Title | SS4+ Brake System Rear |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| UPC | 844165035046 |
| Part Number | 4302392B |
