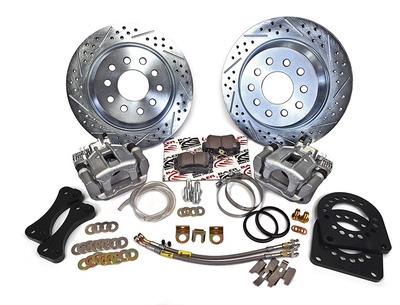

The IronSport brake kit features a single piston floating caliper mounted to an 11.625" 1-piece slot, drill, zinc plated rotor. The IronSport system includes calipers, rotors, brackets, hardware, stainless braided brake hoses and fittings. The IronSport is the most cost effective, full feature drum to disc conversions available. The 11.65" IronSport fits some 15" and most 16" or larger wheels.
Features:
- Single Piston Caliper
- Silver Zinc-Plated Finish
- Slot, Drilled, Zinc-Plated Rotor
- Integral Park Brake in Caliper
- Modern Brake for Smaller Wheels
About Baer Brakes
Specs
| Axle | Rear |
| Axle Flange | GM 10/12 Bolt C-Clip (Small Car Pattern) |
| GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| GM Small Pattern 10/12 Bolt with Flush Mount Bearing |
| Brand | Baer Brakes |
| Caliper | 1 Iron |
| Caliper Color | Silver |
| Disc Brake Caliper (Rear) Piston Quantity | 1 |
| Disc Brake Caliper (Rear) Type | Floating |
| Disc Brake Pad FMSI Number | D0627 |
| Disc Brake Rotor (Rear) Construction | Vented |
| Disc Brake Rotor (Rear) Outside Diameter | 11.650 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Hose Material | Stainless Steel |
| Includes Park Brake | Yes |
| Includes Park Brake Cables | No |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 15 IN |
| Product Line | IronSport |
| Product Type | 11.65 Inch IronSport Rear Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Diameter | 11.650 IN |
| Rotor Thickness | .705 IN |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits applications with non-staggered rear shocks |
| Template | V107I |
| Title | IronSport Brake System Rear |
| Wheel Lug/Bolt Pattern | 5x4.50 IN |
| 5x4.75 IN |
| UPC | 090127963531 |
| Part Number | 4302134 |
