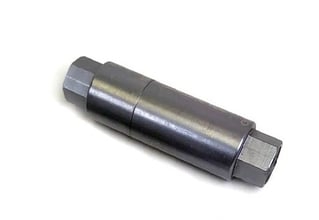

Pressure Residual Valve - 2LB, 3/8 IFF Fittings

Pressure Residual Valve - 2LB, 3/8 IFF Fittings

Part No.: 6805148

Price: $29.95
Quantity:

Pressure Residual Valve - 2LB, 3/8 IFF Fittings Product Description:

Residual Pressure Valve 2lb 3/8 IFF

Billit Aluminum w/Gray Anodized Finish

Overview
Pressure residual valves are designed to maintain a small amount of line pressure needed in certain situations. The 2lb valve would be used with disc brakes whenever the master cylinder is mounted below or level with the calipers to prevent possible fluid drain back which can result in excessive pedal travel (4 wheel disc brake vehicle would use 2 valves, one in the front and on in the rear circuit). A 10lb valve would be used in any drum brake circuit no matter of the master cylinder location. Pressure residual valves are machined out of billet aluminum, are available with 3/8-24 inverted flare female or -3AN male threads and have a gray anodized finished.. Billet aluminum frame mounts are available separately.

Features:

  • 2-Pound Valve
  • 3/8-24 IF Female Fitting
  • Billet Aluminum
  • Gray Anodized Finish

About Baer Brakes

Specs
Box Count 1
Brand Baer Brakes
Emission Code 6
Export Description Brake Components
Finish Gray Anodized
Grade Type Premium
Includes 1x Residual Valve
Inlet Diameter 3/8-24 IFF
Material Billet Aluminum
Mounts Included No
Pressure 2 Pounds
Product Line Residual Valve
Product Type Residual Valve
Prop 65 - Short Label WARNING: Cancer Harm - www.p65warnings.ca.gov
Quantity 1
Title Baer Brakes Pressure Residual Valve – Billet Aluminum, 2#, 3/8-24 IF Female
Universal Or Specific Fit Universal
UPC 844165052395
Part Number 6805148
