ReMaster 2-Bolt GM/Ford Master Cyl Assembly, Gray, 1in bore, Left port.

ReMaster 2-Bolt GM/Ford Master Cyl Assembly, Gray, 1in bore, Left port.

Part No.: 6801238LP

Price: $439.95
Quantity:

ReMaster 2-Bolt GM/Ford Master Cyl Assembly, Gray, 1in bore, Left port. Product Description:

MASTER CYLINDER

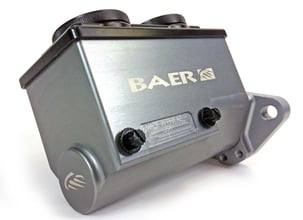

Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 1.000 in. Bore, Left Side Ports, Gray Anodized, with a 2-bolt mounting flange fitting many Ford and GM applications.

Overview
This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1" bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available

Features:

  • 2-Bolt GM/Ford Firewall Mounting Bracket
  • Fully machined 6061 T6 billet aluminum construction
  • Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
  • Left side ports
  • Machined and knurled screw-on caps for easy access to fill without spillage
  • Anodized Remasters feature laser-etched logos

About Baer Brakes

Specs
Area 0.78 IN
Bleeder Hoses Included No
Bleeder Screw Included No
Bore Size 1.00 IN
Box Count 1
Brake Booster Included No
Brake Pressure Switch(s) Included No
Brand Baer Brakes
Category Brakes
Connector For Warning Light No
Emission Code 6
Export Description Brake Components
Fittings Included Yes
Flange Type 2 Bolt GM/Ford
Gasket Or Seal Included No
Grade Type Premium
Includes 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts
Master Cylinder Cap Included Yes
Master Cylinder Material 6061 T6 billet aluminum
Master Cylinder Outlet Port Fittings 3/16" Inverted Flare and Tube Nuts w/ Brass Seat
Banjo w/o Brass Seat
Master Cylinder Outlet Port Quantity 2
Master Cylinder Outlet Port Size 3/8-24
Master Cylinder Port Exit Left Side
Mounting Hardware Included No
Product Line Master Cylinder Assembly
Prop 65 - Short Label WARNING: Cancer Harm - www.p65warnings.ca.gov
Quantity Sold individually
Remaster Body Color Gray
Remaster Body Finish Anodized
Remaster Caps Color Black
Remaster Caps Finish Anodized
Remaster lid Color Black
Remaster lid Finish Anodized
Removable Seats Yes
Reservoir Included Yes
Reservoir Material 6061 T6 billet aluminum
Reservoir Size 7oz per reservoir, Fill to 75% or 5.25oz per reservoir
Reservoir Style Integral
Reservoir Type Dual
Sensor Included No
Series Remaster
Stroke 1.1 IN
System Notes gray anodized,1IN bore,left port
Title ReMaster Master Cylinder 2-Bolt GM/Ford, Gray Anodized Finish, Left Port, 1.000" Bore
Universal Or Specific Fit Universal
Volume Ratio 2:1
UPC 844165046189
Part Number 6801238LP
