Chevy LS All Inclusive Wide Mount Wraptor Serpentine Kit-Polished Finishes Product Description:

Chevy LS Engine Wide Mount Serpentine Kit

Fits LS1, LS2, LS3, LS6 & LS7 Engines
All Inclusive Kit! Includes Hub Adapter, Belts, Remote Reservoir and More!

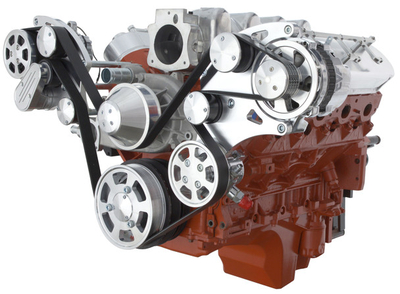

All Inclusive WRAPTOR™ 8 Track Serpentine System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley.

KIT INCLUDES:

• High Flow Aluminum Water Pump*
• GM Type II Power Steering Pump
• 140 Amp, 1-Wire CS130 Alternator*
• Sanden Style Peanut Compressor with 8 Rib Clutch
• Polished AC Compressor Fitting
• Polished Remote Mount Reservoir with Mounting Bracket
• Gates Premium 8 Rib Belt*
• 8 Rib Water Pump Pulley*
• 8 Rib Crank Pulley*
• 8 Rib Alternator Pulley*
• 8 Rib Power Steering Pulley
• Gates Spring Loaded Tensioner*
• Two Piece Billet Aluminum Bracket*
• Hub Adapter for attaching crank pulley to SFI or ATI Balancer*
• Billet Compressor Clutch Cover
• Billet alternator fan*
• All Mounting Hardware*

**Included with all configurations

Tech Tip: It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance

APPLICATION NOTES

• Power Steering Lines from pump to reservoir not included
• Compatible with Hydroboost
• Some drive by wire applications may require Holley part# 717-15
• Not compatible with 102MM or MSD Atomic 2701 Intake
