Billet Fuel Rail Kit for LS Truck Intake

Billet Fuel Rail Kit for LS Truck Intake

Part No.: 534-245

Price: $338.95
Quantity:

Billet Fuel Rail Kit for LS Truck Intake Product Description:

BILLET FUEL RAIL KIT-OE TRUCK LS INTAKES

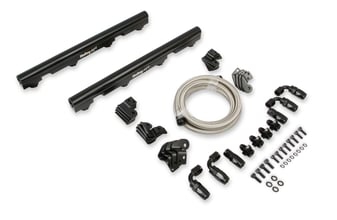

Includes billet fuel rails, brackets, (4) -6 to 3/4-16 O-ring adapters, (6') braided hose, (4) 90º and (2) straight -6 hose ends, and mounting hardware.

Overview
Our fuel rail kit allows dual -8AN feeds to keep up with fueling demands with fuels like E85, E98, M1, and the like. This kit will also allow you to run both rails to a single high-flow fuel pressure regulator for complete control over your fuel system. Includes (2) fuel rails (4) -6 to 3/4"-16 O-ring fittings, (6') braided hose, (4) 90º and (2) straight -6 hose ends, fuel rail mounting brackets, and required mounting hardware.

Features:

  • Bright dip, black anodized finish with laser etched EFI logo for long lasting good looks
  • 5/8” diameter fuel passage provides the flow capacity for high horsepower applications
  • Fuel rails are machined to accept -8 (3/4-16) O-ring fittings
  • Includes (4) -6 to 3/4-16 O-ring adapters, (6') braided hose, (4) 90º and (2) straight -6 hose ends

About Holley EFI

Specs
Brand Holley EFI
Category Intake Manifolds
Color Black
Emission Code 5
Engine GM LS1/LS2/LS6
Fittings Included Yes
Fuel Injection Type Port
Fuel Injectors Included No
Fuel System Type EFI
Gasket Or Seal Included Yes
Grade Type Performance
Material Aluminum
Product Type Fuel Rail
UPC 090127053461
Part Number 534-245
Emissions
5

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Tech Resources

Holley EFI Dealers
Do you need a custom kit built for your application? Do you need a system installed and tuned? Click here to find the Holley EFI dealer in your area!

Note: If this product is to be used with aftermarket (tall) EV1 performance injectors: You will need the 534-246 bracket kit
