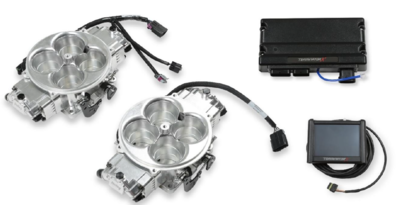

The Terminator X Stealth 4500 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car!
Features:
- Bolt on 4500 Flange Carburetor Replacement for 2x4 intake manifolds
- 2.125" Throttle Plates, Flow 1440 CFM each for large cubic inch engines
- Timing Control support integrated within the ECU using supporting components (distributor, ignition box, or crank trigger)
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- Plug and play with Holley EFI Accessories, such as the 12.3" and 6.86" Pro Dash; CAN EGT; and Digital Analog style EFI gauges
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
- Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options
- Each throttle body contains 4x 100lb/hr fuel injectors
- Universal engine harness allows you to easily install the Terminator X 2x4 4500 system on a wide variety of engine combinations
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Available in 2 finishes, Shiny and Black
- External fuel pressure regulator required, such as 12-848
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- Throttle Linkage not included
Specs
| Accelerometer Support | Yes |
| Boost Control | Yes |
| Brand | Holley EFI |
| CAN-BUS Support | Yes |
| Category | Air and Fuel Delivery |
| CFM | 2880 |
| Coast Guard Approved | No |
| Coil Per Cylinder Ignition Support | Yes |
| Color | Shiny |
| Datalogging Support | Yes |
| Distributor Included | No |
| Dry Nitrous Control | Yes |
| e85 Support | No |
| EGT Support | Yes |
| Emission Code | 3 |
| Finish | Shiny |
| Flange Size | 4500 |
| Flange Style | Dominator |
| Forced Induction HP@60PSI | 1250 |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | Yes |
| Fuel Pressure | 58.5 PSI |
| Fuel Pressure Regulator Included | No |
| Fuel Pump Included | No |
| Grade Type | Performance |
| Handheld Included | Yes |
| Height | 3.85" |
| Horsepower Rating (HP) | 1500 |
| Idle Air Control Motor Included | No |
| Ignition Timing Control | Yes |
| Ignition Type | Universal |
| Individual Cylinder Fuel Corrections | No |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 8AN |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| MAP Sensor | 1bar |
| Max Horsepower Rating | 1500+ |
| Mounting Hardware Included | No |
| Multi-Stage Nitrous Control | Yes |
| Naturally Aspirated HP@60PSI | 1500 |
| Part Type | Fuel Injection Conversion Kit |
| PDM | No |
| Power Distribution Module | No |
| Product Type | EFI System |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Sub Category | Service Kits |
| Terminator LS Options | Fuel, Spark |
| Throttle Bore | 2.125 in. |
| Throttle Position Sensor Included | Yes |
| Traction Control Support | Yes |
| Transmission | N/A |
| User-Tuneable | Yes |
| Wet Nitrous Control | Yes |
| UPC | 090127130230 |
| Part Number | 550-1080 |
