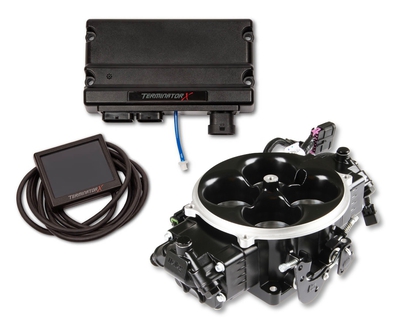

The Terminator X Stealth 4500 EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car!
Features:
- Bolt on 4500 Flange Carburetor Replacement
- Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
- 2.125” Throttle Plates, Flow 1440 CFM for large cubic inch engines
- Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options
- External fuel pressure regulator required, such as 12-848
- Integrated ignition timing control
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- OEM Style TPS/IAC, for years of dependable service.
- Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th – ¼ and 3/16ths)
- Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector terminated, making the install
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- Plug and play with Holley EFI Accessories, such as the 12.3” and 6.86” Pro Dash, CAN EGT, and Digital Analog style EFI gauges
- Available in 2 finishes, Shiny and Black
Specs
| Accelerometer Support | Yes |
| Boost Control | Yes |
| Brand | Holley EFI |
| CAN-BUS Support | Yes |
| Category | Air and Fuel Delivery |
| CFM | 1440 |
| Coil Per Cylinder Ignition Support | Yes |
| Color | Black |
| Datalogging Support | Yes |
| Distributor Included | No |
| Dry Nitrous Control | Yes |
| e85 Support | No |
| EGT Support | Yes |
| Emission Code | 3 |
| Finish | Black |
| Flange Size | 4500 |
| Flange Style | Dominator |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | Yes |
| Fuel Pressure | 58.5 PSI |
| Fuel Pressure Regulator Included | No |
| Fuel Pump Included | No |
| Grade Type | Performance |
| Handheld Included | Yes |
| Idle Air Control Motor Included | No |
| Ignition Timing Control | Yes |
| Ignition Type | Universal |
| Individual Cylinder Fuel Corrections | No |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 8AN |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| MAP Sensor | 1bar |
| Max Horsepower Rating | 1500 |
| Mounting Hardware Included | No |
| Multi-Stage Nitrous Control | Yes |
| Part Type | Fuel Injection System |
| Product Type | EFI System |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Sub Category | Fuel Injection System and Related Components |
| Terminator LS Options | Fuel, Spark |
| Throttle Bore | 2.125 in. |
| Throttle Position Sensor Included | Yes |
| Transmission | N/A |
| User-Tuneable | Yes |
| UPC | 090127105252 |
| Part Number | 550-1071 |
