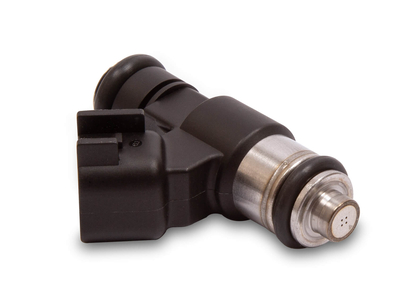

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:
- PICO/EV6 style performance injectors – sold individually or set of 8
- High impedance for use with saturated drivers
- Rated injector flow: 120 lb./hr. at 60 PSI of base fuel pressure
- USCAR injector connector
- 40mm o-ring to o-ring length
Specs
| Body Diameter | 0.65 |
| Body Length | 1.85" |
| Body Style | EV6 |
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Color | Black |
| Connector Series | EV6 |
| Connector Shape | EV6 |
| Emission Code | 4 |
| Flow Rate | 120 4U |
| Fuel Injection Type | Port |
| Fuel Type | E-85, Gasoline |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Impedance | High (12.2 Ohm) |
| Mounting Hardware Included | No |
| O-Ring Quantity | 2 per injector |
| O-Ring to O-Ring | 1.421 |
| Part Type | Fuel Injector |
| Product Type | Fuel Injector |
| Rated Injector Flow | 120 lb/hr |
| Retainer Clips Included | No |
| Sub Category | Fuel Injection System and Related Components |
| Terminal Gender | Female |
| UPC | 090127127285 |
| Part Number | 522-121X |
