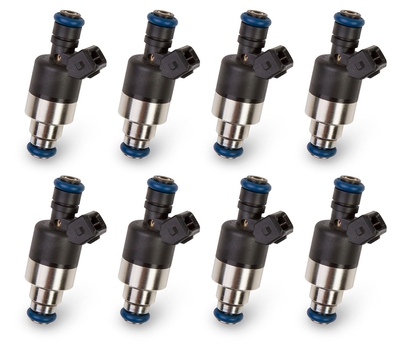

Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features:
- Bosch/EV1 style performance injectors - Set of 8
- High impedance (12.2 Ohms) for use with saturated drivers
- Rated injector flow: 36 lb/hr @ 43 PSI
- Supports up to 575 horsepower
- Tri-cone spray pattern
Specs
| Body Diameter | 0.97 |
| Body Length | 2.85" |
| Body Style | EV1 |
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Color | Black |
| Connector Series | EV1 - Jetronic - (Bosch Style) |
| Connector Shape | EV1 - Jetronic - (Bosch Style) |
| Emission Code | 3 |
| Flow Rate | 36 4U |
| Fuel Injection Type | Port |
| Fuel Type | E-85, Gasoline |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Impedance | High (12.2 Ohm) |
| Mounting Hardware Included | No |
| O-Ring Quantity | 2 per injector |
| O-Ring to O-Ring | 2.415" |
| Part Type | Fuel Injector |
| Product Type | Fuel Injector |
| Rated Injector Flow | 36 lb/hr |
| Retainer Clips Included | No |
| Sub Category | Fuel Injection System and Related Components |
| Terminal Gender | Female |
| UPC | 090127666630 |
| Part Number | 522-368 |
