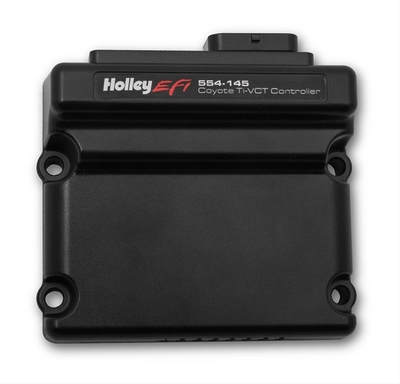

Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Features:
- Compatible with HP, Dominator EFI, and Terminator X or X MAX.
- Ti-VCT Cam control down to 400 RPM
- User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
- Commanded Timing matched within 1 degree
- 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
- Integrated Stock Cam Position Tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
- Main Harnesses come terminated with Ford TPS and IAC Connectors, making it easy to convert from a DBW Throttle Body to a Manual Throttle Body, if desired
- Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
- Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
- CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
- Pre-calibrated Ford sensor drop downs in the Holley EFI Software
- Plug and Play Main Harness for 2011-2017 Coyote engines w/ Stock Camshafts using Stock Coils (558-110)
- Plug and Play Main Harness for 2011-2017 Coyote engines w/ Stock Camshafts using Holley EFI Smart Coils (558-122)
- Terminator X kits cover a wide variety of engine combinations from 2011 to 2017.
Specs
| Brand | Holley EFI |
| Category | Engine |
| Connector Color | Black |
| Emission Code | 4 |
| Housing Material | Composite |
| Part Type | Engine Variable Valve Lift Control Module |
| Product Type | ECU Assembly |
| Sub Category | Control Modules |
| UPC | 090127029947 |
| Part Number | 554-145 |
