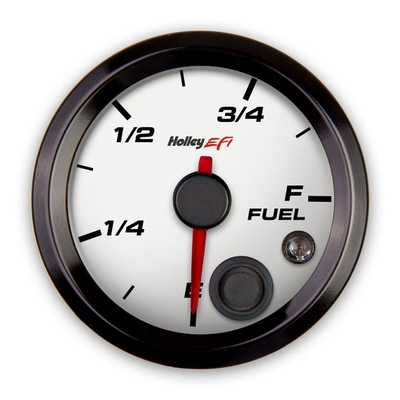

Unlike the other Holley EFI gauges which daisy chain together, the fuel level gauge wires directly to the sending unit, eliminating the need for custom ECU configuration.
Features:
- Wires directly to sending unit, programmable for factory and aftermarket sending units with a range anywhere within 0-300ohms
- Includes 12' shielded cable to connect directly to sending unit
- 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
- Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
- Adjustable LED warning light allows user to set low trigger points
- LED warning light brightness can be configured for both day and night
- Spin lock ring threads to back of gauge case for simple and secure gauge mounting
- CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
- Multiple bezel options available separately – User can customize the gauges to their preference
Specs
| Bezel Color | White |
| Body Color | Black |
| Brand | Holley EFI |
| Category | Body |
| Color Change Button | No |
| Dimmable | No |
| Display Format | Analog |
| Emission Code | 5 |
| Face Color | White |
| Gauge Background Color | White |
| Gauge Type | Fuel Level |
| Illuminated | No |
| Indicator Markings Color | Black |
| Lens Color | Clear |
| Liquid Filled | No |
| Mounting Hardware Included | No |
| Mounting Pod Included | No |
| Part Type | Fuel Level Gauge |
| Pointer Color | Red |
| Product Type | Gauge |
| Size | 2-1/16" |
| Sub Category | Instrument Panel |
| Universal Or Specific Fit | Universal |
| Warning Light | No |
| UPC | 090127734308 |
| Part Number | 553-133W |
