Looking for a plug and play kit for your GM LS engine? The HP ECU allows you to accurately control the fuel and ignition of your engine plus much more. Got a stock LS engine? Simply download a base map and you're on your way. Got a turbocharged, nitrous fed LS engine on water/meth? This HP EFI kit can control that too!
Features:
- Simple Installation - Plug and Play control of GM LS2/LS3/LS7 engines. Just plug the harness into your factory sensors, wire the power and grounds and you are ready to take complete control of your LS engine
- More Functionality - Provides significantly more functionality than OEM or other competitive ECUs (boost control, nitrous control, water/meth injection, plus a host of additional inputs and outputs to control fans, pumps, relays etc.)
- Easy To Use - Laptop programmable ECU includes a variety of base maps that will have you hitting the cruise or track in no time
- Ideal For Everything - including stock 5.3L engine swaps or all out, 3,000+ horsepower race cars that need a simple and powerful ECU and harness solution
- Industry Leading Self Tuning Fuel Strategy - means less time tuning and more time enjoying the power of your LS vehicle

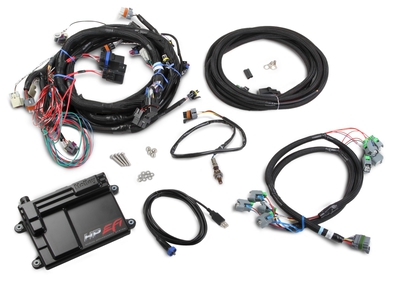

- Kit includes ECU, harness, communication cable, software, USCAR (EV6 Style) injector connectors, and NTK wideband O2 sensor, designed to be used with GM LS2/LS3/LS7 engines with factory GM coils and a 58 tooth crank sensor
- The NTK Oxygen Sensor is recommended when using leaded or methanol fuels, high exhaust and forced induction applications or for highest precision feedback
- ECU is fully potted and can be mounted in the engine compartment or interior
- Sealed automotive and marine grade connectors
- 1-5 Bar MAP sensor capability
- Optional plug and play hand-held programmer, 5.7" touch screen and digital gauges are available for ultimate control and vehicle monitoring
- ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance
- For a full list of advanced features such as boost, nitrous, water/meth, individual cylinder control and more click the document icon under the product image!
Specs
| Accelerometer Support | Yes |
| Boost Control | Yes |
| Brand | Holley EFI |
| CAN-BUS Support | Yes |
| Category | Air and Fuel Delivery |
| Coil Per Cylinder Ignition Support | Yes |
| Crank Reluctor | 58x |
| Datalogging Support | Yes |
| Dry Nitrous Control | Yes |
| e85 Support | Yes |
| EGT Support | Yes |
| Emission Code | 3 |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | No |
| Fuel Pressure Regulator Included | No |
| Fuel Pump Included | No |
| Grade Type | Performance |
| Ignition Timing Control | Yes |
| Ignition Type | GM LS 58x |
| Individual Cylinder Fuel Corrections | Yes |
| Injector Connector | USCAR (EV6) |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| Multi-Stage Nitrous Control | Yes |
| Part Type | Fuel Injection Conversion Kit |
| Product Type | HP EFI Kit |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Sub Category | Service Kits |
| Throttle Position Sensor Included | No |
| Traction Control Support | Yes |
| User-Tuneable | Yes |
| Wet Nitrous Control | Yes |
| UPC | 090127687468 |
| Part Number | 550-603N |
