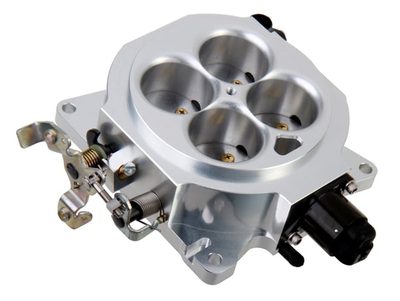

If you're thinking of building either a high performance or race multi-point fuel Injection system for your engine, look no further than Holley for the throttle body. Holley offers a line of universal throttle bodies that range in sizes from 1000 CFM to 2000 CFM and are available with standard square bore or DOMINATOR® flanges. These billet beauties will provide all the air your motor can ingest. Sporting premium design features that enhance their ruggedness and durability, Holley performance throttle bodies are built to take the most severe usage. They'll look great as well - sitting on top of your street rod or street/strip engine. They have the looks to go with the brawn!
Features:
- Universal
- CNC Billet Construction
- Progressive Linkage System
- More Precise Throttle Control
- Better Drivability
- Maximum Airflow
- Minimizes Air Turbulence
- Throttle shafts are offset with respect to the throttle plates so engine vacuum will assist throttle plate closure
Specs
| Adjustable | Yes |
| Barrels | 4 |
| Billet Color | Clear |
| Bore Diameter | 4x1.75 IN |
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| CFM | 1000 |
| Emission Code | 4 |
| Flange Style | 4150/4160 Square Bore |
| Fuel Injectors Included | No |
| Fuel System Type | EFI |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Height | 2" |
| Idle Air Control Motor Included | Yes |
| Material | Billet |
| Mounting Hardware Included | No |
| Part Type | Fuel Injection Throttle Body |
| Product Type | Throttle Body |
| Sub Category | Fuel Injection System and Related Components |
| Throttle Body Finish | Polished |
| Throttle Body Material | Billet Aluminum |
| Throttle Body Spacer Included | No |
| Throttle Bore | 1.750 inch |
| Throttle Position Sensor Included | Yes |
| UPC | 090127665572 |
| Part Number | 112-577 |
