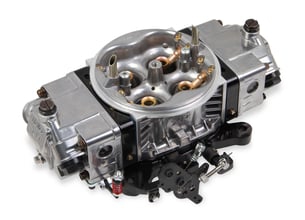

Holley Aluminum Ultra XP Circle Track Carburetor

Name: Holley Aluminum Ultra XP Circle Track Carburetor 1
Brand: Holley
SKU: 0-80812BKX
Price: 1056.95 USD
Availability: InStock

Part No.: 0-80812BKX

Price: $1,056.95

Quantity:

Holley Aluminum Ultra XP Circle Track Carburetor Product Description:

4150 ALUM ULTRA XP 650 CFM CIRCLE TRACK

650 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline

Overview

Xtreme Performance - Holley Ultra XP™ Circle Track Carburetors! Ultra XP carbs are up to 38% lighter than our traditional race carbs, have fuel capacity that is 20% greater and 30 other new features! They're available in our Hard Core Gray™ hard coat anodized finish with Black™ billet for improved corrosion protection & also available in natural tumble-polished aluminum with Black™ metering blocks and base plate. The Aluminum Ultra XP Circle Track carbs are available in 650 & 750 CFM's. Holley Ultra XP carburetors are Specifically Calibrated for Circle Track & offer new features such as anti-siphon valve in the main body; high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, fully tunable billet metering blocks, billet base plate, wedge floats, adjustable secondary linkage and knurled (hand adjustable) curb idle screws. Holley Ultra XP carburetors are the ultimate in square bore race carburetors!

Features:

Aluminum Construction (saves 4.5 lbs - 38% weight savings)
Shiny with black anodized billet aluminum metering blocks and base plate
Calibrated specifically for use on circle track
Has a set screw in the base plate for wide open throttle stop adjustment
PTFE coated throttle shafts rides in oil impregnanted bronze bushings for smooth throttle actuation
Anti-siphon valve in main body to reduce pump pullover
Contoured venturri inlet offers balanced airflow for increased horsepower
Air bleeds moved outward to allow a smoother transition of airflow from the top of the carburetor into the venturii
Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)
Integrated idle bypass valve eliminates the need for holes in throttle plates and allows for proper adjustment of idle while maintaining correct throttle plate to transfer slot relationship.
Helps maintain good idle control when using radical camshafts.
Dual 30cc accelerator pumps provide the perfect amount of fuel from idle to full throttle
Fuel bowls provide 20% more fuel capacity while controlling slosh with internal baffling
Clear sight windows on both sides of bowls for easy and safe fuel level adjustments
Built in drain plug in front center of bowl provides easy access to empty contents of bowl
-8 (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side; comes from the factory with 8AN inlet fittings
4 corner idle allows you to precisely control your idle system
Internal pump passage in metering block equipped with a tunable bleed off for further tuning of accelerator pump
Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools
Primary throttle shaft capped to prevent entry of debris & contaminates
Factory machined accessory mounting hole for easy addition of adjustable primary throttle stop. New secondary pump cam lever designed to provide positive throttle stop on secondary side
Set up with 1:1 throttle actuation
Baseplate designed with a boss that can be consumer machined for vacuum source
Includes wedge floats
100% wet-flow tested by Holley technicians to assure it arrives ready to run!

About Holley

Holley Performance Brands is the undisputed leader in carburetors, fuel pumps, fuel injection, intake manifolds, fuel injection, and fuel systems.

Specs

Barrel Quantity	4
Barrels	4
Billet Color	Shiny with Black Billet
Body Color	Polished
Body Finish	Polished
Booster	Downleg
Booster Design	Downleg
Brand	Holley
Carburetor Material	Aluminum
Carburetor Use	Professional Race
CFM	650
Choke	None
Circuit	2
Condition	New
Cubic Feet Per Minute Rating	650
Emission Code	3
Finish	Shiny
Flange Type	Square/4150
Fuel	Gasoline
Fuel Inlet	Dual
Grade Type	Performance
Linkage Attached	Yes
Marine Approved	No
Marine Use	No
Material	Aluminum
Model	4150
Mounting Hole Quantity	4
Primary Jet Diameter	74
Primary Main Jet	74
Primary Power Valve	6.5
Primary Pump Nozzle Size	32
Product Type	Carburetor
Sale Category	Carburetors and Components
Secondaries	Mechanical
Secondary Main Jet	82
Secondary Pump Nozzle Size	31
Spacer Included	No
Supercharged Application	No
Throttle Bore	1.688 inch
Venturii Size	1.250 inch
Warranty	Limited 90 Day
UPC	090127720936
Part Number	0-80812BKX

Service Parts

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle

Tech Resources

Holley Carburetor Selector

Instructions - 199r10766.pdf

This carburetor was designed with a dual mounting pattern, so that it can be installed on a manifold machined for a 4150 or 4500 series carburetor.
