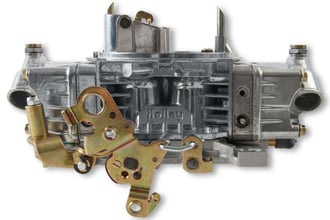

Holley Supercharger Double Pumper Carburetor - Draw-Thru

Holley Supercharger Double Pumper Carburetor - Draw-Thru

Part No.: 0-80573S

Price: $908.95
Quantity:

Holley Supercharger Double Pumper Carburetor - Draw-Thru Product Description:

4150 750CFM DP SUPERC CARB POLISH

750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline

Overview
Holley Double Pumper® carburetors are a perfect performance upgrade for hot street cars and race vehicles. Double Pumper carburetors are an American icon when it comes to performance carburetors. From their roots as the premier carburetor on many factory muscle cars to powering thousands of vehicles across the finish line, the Double Pumper is a great choice whether you are burning up the street or the quarter mile. The Double Pumper is designed for use on lightweight vehicles with a manual transmission or an automatic transmission with a high stall and low rear end gears. The Supercharger Double Pumper with a tumble polished shiny finish and features dual accelerator pumps for additional fuel under initial acceleration; mechanical secondaries for great performance; dual feed fuel inlets for constant high volume fuel delivery and a manual choke for easy control of engine warm up. These carburetors that are intended for use with superchargers, and have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions. Without this external referencing, the power valve would be "reading" the supercharger vacuum, which has no bearing on the engine load.

Features:

  • Tumble polished shiny finish for good looks
  • Small block Chevrolet 1x4, 170 series blower calibration
  • Manual (Cable driven, hand operated) choke for precise cold start control
  • Dual accelerator pumps for addition fuel under initial acceleration
  • Dual feed fuel inlets for constant high volume fuel delivery
  • Mechanical Secondaries for perfect off the line launches
  • 4 corner idle allows you to precisely control your idle system
  • Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing
  • Boost referenced power valve for proper enrichment under acceleration
  • 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

About Holley

Holley Performance Brands is the undisputed leader in carburetors, fuel pumps, fuel injection, intake manifolds, fuel injection, and fuel systems.

Specs
Barrel Quantity 4
Barrels 4
Body Color Polished
Body Finish Polished
Booster Downleg
Booster Design Downleg
Brand Holley
Carburetor Material Aluminum
Carburetor Use Performance and Race
Category Carburetors and Components
CFM 750
Choke Manual
Choke Type Manual
Condition New
Cubic Feet Per Minute Rating 750
Emission Code 3
Finish Shiny
Flange Type Square/4150
Fuel Gasoline
Fuel Inlet Dual
Grade Type Performance
Linkage Attached Yes
Marine Approved No
Marine Use No
Material Aluminum
Model 4150
Mounting Hole Quantity 4
Primary Jet Diameter 74
Primary Main Jet 74
Primary Power Valve 10.5
Primary Pump Nozzle Size 28
Product Type Carburetor
Secondaries Mechanical
Secondary Main Jet 84
Secondary Pump Nozzle Size 31
Spacer Included No
Supercharged Application Yes
System Type Draw Thru
Throttle Bore 1.688 inch
Warranty Limited 90 Day
UPC 090127467190
Part Number 0-80573S
Service Parts
3

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
Tech Resources

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
