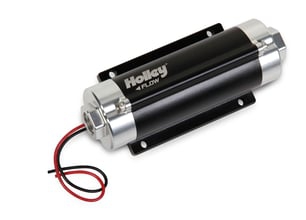

100 GPH HP In-line Fuel Pump

Name: 100 GPH HP In-line Fuel Pump
Brand: Holley
SKU: 12-890
Price: 486.95 USD
Availability: InStock

Part No.: 12-890

Price: $486.95

Quantity:

100 GPH HP In-line Fuel Pump Product Description:

FUEL PUMP, HP HIGH FLOW ELECTRIC

Carb or EFI Applications Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85

Overview

Holley's HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck, or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost-effective, attractive package. HP™ fuel pumps are Race gas, E-85, and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.

Features:

Billet aluminum construction for durability & good looks
-8 an o-ring inlet/outlet for high flow and superior sealing
Excellent for use with carbureted or EFI applications
Fully submersible in-tank for custom applications, space savings and less plumbing
Compatible with 12v to 18.5v systems for street or race use
Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
Proven durability beyond 3,000 hours in gasoline or diesel fuels
Weighs only 3.1 lbs.
Current draw at 43 psi and 13.5 vdc is 8.6 amps
Not designed for use on aircraft of any type.

About Holley

Specs

Application	Universal
Average Current Draw	8.6 68
Brand	Holley
Category	Air and Fuel Delivery
Emission Code	5
Forced Induction HP@43PSI	700
Forced Induction HP@60PSI	600
Forced Induction HP@8PSI	800
Free Flow GPH	105
Fuel Delivery Type	Carburetor
	Fuel Injection
Fuel Sending Unit Included	No
Fuel System	Carbureted
	EFI
Fuel Type	Diesel
	E85
	Gasoline
Gasket Or Seal Included	No
GPH@43PSI	76
GPH@60PSI	70
GPH@8PSI	100
Grade Type	Performance
Inlet Fitting Thread Size	3/4-16 IN
Inlet Size	8 AN O-Ring - 3/4-16 SAE
Inlet Type	8 AN ORB
Internal Or External	Internal External
LPH@43PSI	287
LPH@60PSI	265
LPH@8PSI	363
Material	Aluminum
Maximum Flow Rating	105 GPH
Maximum Pressure	80 PS
Naturally Aspirated HP@43PSI	900
Naturally Aspirated HP@60PSI	800
Naturally Aspirated HP@8PSI	1050
Negative Ground	Yes
Outlet Quantity	3/4-16 IN
Outlet Size	8 AN O-Ring - 3/4-16 SAE
Outlet Type	8 AN ORB
Part Type	Electric Fuel Pump
Product Type	Fuel Pump
Pump Body Color	Black Anodized
Regulator Included	No
Sub Category	Fuel Pumps and Related Components
Universal Or Specific Fit	Universal
Voltage	12-18.5 2H
Warranty	Limited 90 Day
Wire Quantity	2
UPC	090127670538
Part Number	12-890

Emissions

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

Tech Resources

Holley Fuel Systems Chart

Instructions - holleyfuelsystems_chart1.pdf

Instructions - 199r10569-1rev2.pdf

*Pump gas compatible for intermittent or under 90 degree ambient temperature use Pump gas use recommendations: • This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees • For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-600 or 12-800 for optimum hot fuel handling• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system. Will work with E-85 and Diesel!These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example:Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as : Part # AT985008ERL.

Warranty Information

Limited 90 Day: See Details
