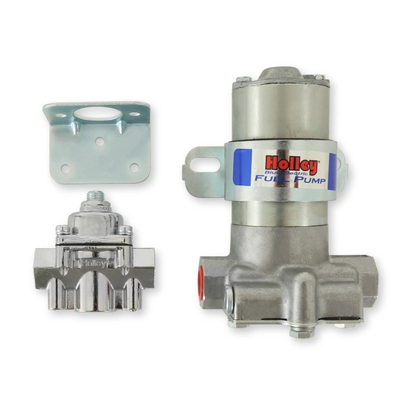

110 GPH Blue® Electric Fuel Pump With Regulator

Name: 110 GPH Blue® Electric Fuel Pump With Regulator
Brand: Holley
SKU: 12-802-1
Price: 217.95 USD
Availability: InStock

Part No.: 12-802-1

Price: $217.95

Quantity:

110 GPH Blue® Electric Fuel Pump With Regulator Product Description:

ELEC FUEL PUMP 6194-2 BLU AUTO

Street/Strip Carbureted Applications Gasoline Only

Overview

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.

Features:

Tumble polished billet look
Lower housing casting designed for enhanced fuel flow
Motor draws only 3 amps current
Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
Improved design for street/strip applications
Not designed for use on aircraft of any type
Distinctive “Blue” logo
Flows 110 GPH (free flow)
Flows 88 GPH at 9 psi
maximum pressure is 14 psi
Includes P/N 12-803 fuel pressure regulator
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve (max 14 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 3 lbs
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems

About Holley

Holley Performance Brands is the undisputed leader in carburetors, fuel pumps, fuel injection, intake manifolds, fuel injection, and fuel systems.

Specs

Application	Universal
Bracket Color	Silver
Brand	Holley
Category	Air and Fuel Delivery
Emission Code	5
Free Flow GPH	110
Free Flow LPH	416
Fuel Delivery Type	Carburetor
Fuel Sending Unit Included	No
Fuel System	Carbureted
Fuel Type	Gasoline
Gasket Or Seal Included	No
Grade Type	Performance
Inlet Fitting Thread Size	3/8 IN
Inlet Size	3/8 inch NPT
Inlet Type	NPT
Internal Or External	External
Material	Aluminum
Maximum Amperage Draw	3 68
Maximum Flow Rating	110 GPH
Maximum Pressure	14 PS
Motor Finish	Silver
Negative Ground	Yes
Outlet Fitting Thread Size	3/8 IN
Outlet Quantity	1
Outlet Size	3/8 inch NPT
Outlet Type	NPT
Product Type	Fuel Pump
Pump Body Color	Silver
Regulator Included	Yes
Universal Or Specific Fit	Universal
Voltage	12 2H
Warranty	Limited 90 Day
Wire Quantity	2
UPC	090127484296
Part Number	12-802-1

Emissions

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

Tech Resources

Fuel Systems Selection Chart

Instructions - 199r7914-3rev6.pdf

Instructions - holleyfuelsystems_chart1.pdf

Instructions - fuel_pump_tech_info.pdf

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only.

Warranty Information

Limited 90 Day: See Details
