Holley EFI Fuel Tank Module - 255 LPH - 1978-1982 Corvette

Holley EFI Fuel Tank Module - 255 LPH - 1978-1982 Corvette

Part No.: 12-313

Price: $465.95
Quantity:

Holley EFI Fuel Tank Module - 255 LPH - 1978-1982 Corvette Product Description:

OEM TANK HANGAR 1978-1981 CORVETTE

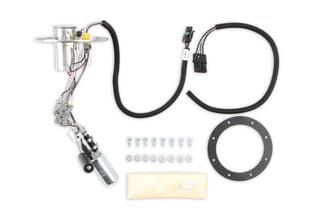

In-tank fuel pump module for 1978-1982 Chevrolet Corvette. Supports Up To 550 Horsepower.

Overview
This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! The 1978-1982 Chevrolet Corvette Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

Features:

  • Supports up to 550 horsepower (HP)
  • Flows 255 liters per hour (LPH)
  • Internally regulated to 58 PSI
  • Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues
Specs
Application 1978-1982 Chevrolet Corvette
Average Flow Rating 255 LPH
Brand Holley Sniper EFI
Category Air and Fuel Delivery
Connector Gender Male
Emission Code 5
Engine Chevrolet Small Block Gen I
Free Flow LPH 255
Fuel Filter Included Yes
Fuel Sending Unit Included Yes
Fuel Sending Unit Ohms 0-90 Ohms
Fuel Tank Pressure Sensor Included No
Fuel Type Gasoline
Gasket Or Seal Included Yes
Grade Type Performance
In Tank or External In Tank
Inlet Diameter (in) 5/16 IN
5/16"
Inlet Quantity One
Lock Ring Included Yes
Make Chevrolet
Material Steel and Plastic
Maximum Pressure 58 PS
Model Corvette
Negative Ground Yes
Outlet Outside Diameter 3/8 IN
Outlet Quantity One
Part Type Fuel Pump Module Assembly
Product Type Fuel Pump Module
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 0 82
Resistance Ohms Full 90 82
Strainer Included Yes
Sub Category Fuel Pumps and Related Components
Universal Or Specific Fit Specific
Vent Size N/A
Warranty Limited 90 Day
Wire Harness Included Yes
UPC 090127062562
Part Number 12-313
Emissions
5

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Warranty Information
Limited 90 Day: See Details
