Holley EFI Fuel Tank Module - 255 LPH - Cougar, Falcon, and Mustang

Holley EFI Fuel Tank Module - 255 LPH - Cougar, Falcon, and Mustang

Part No.: 12-305

Price: $444.95
Quantity:

Holley EFI Fuel Tank Module - 255 LPH - Cougar, Falcon, and Mustang Product Description:

OEM TANK HANGER 64-70 MUSTANG

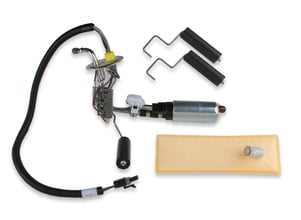

In-tank fuel pump module for 1964-1970 Mustang - 1960-1965 Falcon - 1967-1970 Cougar. Supports Up To 550 Horsepower.

Overview
This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates. The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1960-70 Mustang Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions. This new kit has all of the extra components to fit all three sizes of Mustang fuel tanks from 1964-1970. You choose which fuel gauge float arm for your factory fuel tank size! Fitment: 1964-1968 Ford Mustang -16 gallon tank 1969 Ford Mustang- 20 gallon tank 1970 Ford Mustang- 22 gallon tank 1960-1965 Falcon- 16 gallon tank 1960-1963 Comet- 16 gallon tank

Features:

  • Supports up to 550 horsepower (HP)
  • Flows 255 liters per hour (LPH)
  • Internally regulated to 58 PSI
  • Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues
Specs
Application 1960-1963 Mercury Comet, 1960-65 Ford Falcon, 1964-1970 Mustang, 1967-1970 Mercury Cougar
Average Flow Rating 255 LPH
Brand Holley Sniper EFI
Category Air and Fuel Delivery
Connector Gender Male
Emission Code 5
Free Flow LPH 255
Fuel Filter Included Yes
Fuel Sending Unit Included Yes
Fuel Sending Unit Ohms 73-10 Ohms
Fuel Tank Pressure Sensor Included No
Fuel Type Gasoline
Gasket Or Seal Included Yes
Grade Type Performance
In Tank or External In Tank
Inlet Diameter (in) 5/16
Inlet Quantity One
Lock Ring Included Yes
Material Steel
Maximum Pressure 58 PS
Negative Ground Yes
Outlet Outside Diameter 3/8 IN
Outlet Quantity One
Part Type Fuel Pump Module Assembly
Product Type Fuel Pump Module
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 73 82
Resistance Ohms Full 10 82
Strainer Included Yes
Sub Category Fuel Pumps and Related Components
Universal Or Specific Fit Specific
Vent Size N/A
Warranty Limited 90 Day
Wire Harness Included Yes
UPC 090127057896
Part Number 12-305
Service Parts
Emissions
5

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Tech Resources

The pump is not compatible for use with PWM (Pulse-width Modulation)
Warranty Information
Limited 90 Day: See Details
