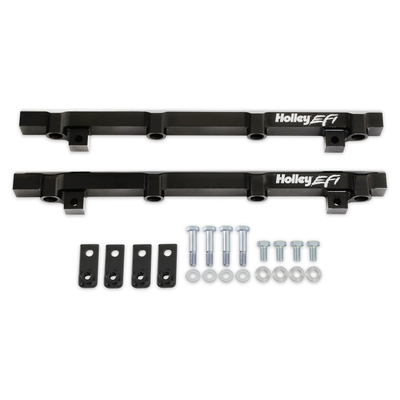

Our fuel rail kit allows dual -8AN feeds to keep up with fueling demands with fuels like E85, E98, M1, and the like. This kit will also allow you to run both rails to a single high-flow fuel pressure regulator for complete control over your fuel system. Includes (2) fuel rails (4) -6 to 3/4"-16 O-ring fittings, fuel rail mounting brackets, and required mounting hardware.
Features:
- Bright dip, black anodized finish with laser etched EFI logo for long lasting good looks
- 5/8” diameter fuel passage provides the flow capacity for high horsepower applications
- Fuel rails are machined to accept -8 (3/4-16) O-ring fittings
- Includes (4) -6 to 3/4-16 O-ring adapters
Specs
| Brand | Holley EFI |
| Category | Intake Manifolds |
| Color | Black |
| Emission Code | 5 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Black |
| Fittings Included | No |
| Fuel Injectors Included | No |
| Fuel System Type | EFI |
| Gasket Or Seal Included | No |
| Material | Aluminum |
| Mounting Hardware Included | Yes |
| Product Type | Fuel Rail |
| UPC | 090127124260 |
| Part Number | 534-269 |
Emissions
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
