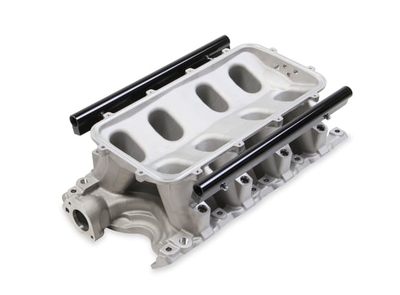

Holley 351W Ford Hi-Ram EFI Manifold Base Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold Base

Holley 351W Ford Hi-Ram EFI Manifold Base Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold Base

Part No.: 300-244

Price: $861.95
Quantity:


Holley 351W Ford Hi-Ram EFI Manifold Base Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold BaseHolley 351W Ford Hi-Ram EFI Manifold Base Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold Base

Holley 351W Ford Hi-Ram EFI Manifold Base Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold Base Product Description:

The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5" deck height. Manifold width is 11.32". • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction.

Features:

  • The 351W manifold is available to work with 95MM or 105MM GM LS throttle bodies
  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 9.5" deck height.
  • Requires the Use of Holley EFI Dual Sync Distributor - 565-111
Basic Operating RPM Range 1500-7000 RPM
Brand Holley EFI
Category Air and Fuel Delivery
Color Natural
Construction Cast
EGR Port No
Emission Code 4
Engine Ford 351W
Finish Satin
Flange Style EFI
Fuel Injectors Included No
Fuel Rail(s) Included Yes
Fuel System Type EFI
Gasket Or Seal Included No
Grade Type Performance
Intake Port Gasket(s) Included No
Manifold Type Hi-Ram
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Natural
Port Size 2.00" x 1.190"
Product Type Intake Manifold Base
Removable Runners No
RPM Power Band 1500-7000
Single Or Dual Plane Type Single Plane
Throttle Body Included No
Warranty Limited 90 Day
UPC 090127029169
Part Number 300-244
Emissions
4

This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
