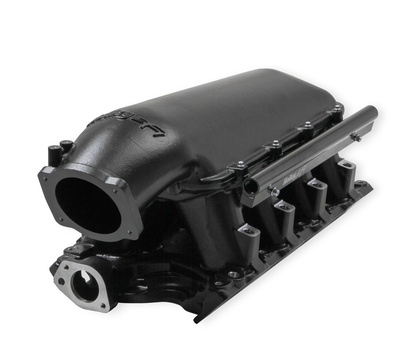

Holley Black 351W Ford Hi-Ram EFI Manifold Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top.

Holley Black 351W Ford Hi-Ram EFI Manifold Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top.

Part No.: 300-242BK

Price: $1,182.95
Quantity:


Holley Black 351W Ford Hi-Ram EFI Manifold Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top.Holley Black 351W Ford Hi-Ram EFI Manifold Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top.Holley Black 351W Ford Hi-Ram EFI Manifold Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top.

Holley Black 351W Ford Hi-Ram EFI Manifold Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top. Product Description:

The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 105MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5" deck height. Manifold Width is 11.32". • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction with black finish.

Features:

  • The 351W manifold is available to work with 105MM GM LS throttle bodies
  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 9.5" deck height.
  • Black Finish
  • Requires the Use of Holley EFI Dual Sync Distributor - 565-111
Basic Operating RPM Range 1500-7000 RPM
Brand Holley EFI
Category Air and Fuel Delivery
Color Black
Construction Cast
EGR Port No
Emission Code 4
Engine Ford 351W
Finish Black
Flange Style EFI
Fuel Injectors Included No
Fuel Rail(s) Included Yes
Fuel System Type EFI
Gasket Or Seal Included Yes
Grade Type Performance
Intake Port Gasket(s) Included No
Manifold Type Hi-Ram
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Black
Port Size 2.00" x 1.190"
Product Type Intake Manifold
Removable Runners No
RPM Power Band 1500-7000
Single Or Dual Plane Type Single Plane
Throttle Body Bore Diameter 105 MM
Throttle Body Included No
Throttle Bore 105mm
Warranty Limited 90 Day
UPC 090127044124
Part Number 300-242BK
Emissions
4

This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
