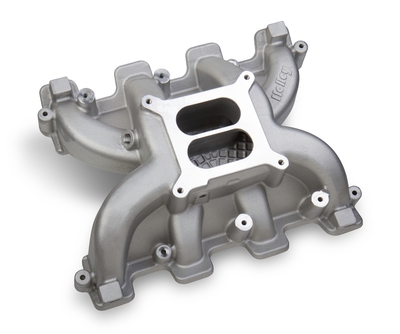

Holley Dual Plane Intake - GM LS1/LS2/LS6 All GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads.

Name: Holley Dual Plane Intake - GM LS1/LS2/LS6 All GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads.
Brand: Holley
SKU: 300-130
Price: 385.95 USD
Availability: InStock

Part No.: 300-130

Price: $385.95

Quantity:

Holley Dual Plane Intake - GM LS1/LS2/LS6 All GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads. Product Description:

Got an LS engine to get running? Nothing is easier than bolting on a carburetor. Holley's dual plane carbureted intake for GM's LS engines will help you get on the streets quick! Its dual plane design makes it perfect for low end torque, yet it still pulls all the way to 6,500 RPM! Our O-ring cylinder head mounting flange gaskets provide an OEM style seal and make installation a snap. Bolt one on today!

Features:

1500-6500 RPM power band
4150 Square bore flange
Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 1500-6500 RPM
Minimum carb flange height means it fits in vehicles with minimal or no hood modifications
Great for carbureted or throttle body EFI street applications
Cast aluminum construction and efficient casting design for light weight, consistent wall thicknesses and improved casting quality
Weighs 15.14 lbs.
Height (front) - 5.07" from front lifter valley cover to carb mounting flange
Height (rear) - 6.14" from rear lifter valley cover to carb mounting flange
Port size - 2.72" height x 1" wide
Mounting flange gasket type - O-ring
Includes Viton® O-rings - Viton® is a registered trademark of DuPont Performance Elastomers

Basic Operating RPM Range	1500-6500 R3
Brand	Holley
Carburetor Flange	Square/4150
Carburetor Studs Included	No
Category	Air and Fuel Delivery
	Intake Manifolds
Category Filter	Intake Manifolds
Color	Natural
Construction	Cast
EGR Port	No
Emission Code	3
Engine	GM LS1/LS2/LS6
Finish	Silver
Flange Style	4150 Square Bore
Front Height	5.07 inch
Front Maximum Height	5.07 IN
Fuel Injectors Included	No
Fuel Rail(s) Included	No
Fuel System Type	Carb
Gasket Or Seal Included	No
Grade Type	Performance
Intake Port Gasket(s) Included	No
Manifold Type	Dual Plane
Material	Aluminum
Nitrous Bung(s) Included	No
Plenum Finish	Natural
Product Type	Intake Manifold
Rear Height	6.14 inch
Rear Maximum Height	6.14 IN
Removable Runners	No
RPM Power Band	1500-6500 RPM
Single Or Dual Plane Type	Single Plane
Throttle Body Included	No
Warranty	Limited 90 Day
UPC	090127687703
Part Number	300-130

Emissions

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle
