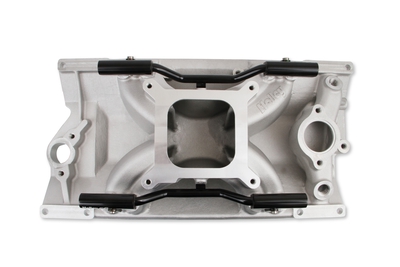

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold Chevy Small Block V8 with L31 Vortec cylinder heads Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications).

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold Chevy Small Block V8 with L31 Vortec cylinder heads Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications).

Part No.: 300-263

Price: $626.95
Quantity:


Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold Chevy Small Block V8 with L31 Vortec cylinder heads Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications).Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold Chevy Small Block V8 with L31 Vortec cylinder heads Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications).

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold Chevy Small Block V8 with L31 Vortec cylinder heads Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications). Product Description:

The new single plane EFI (Electronic Fuel Injection) intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style 112-587 and 112-588. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance. Its low profile and single plane design are ideal for Sniper / Terminator TBI installations (dual planes aren't ideal for EFI) Vortec Intake fits most popular GM crate engines equipped with Vortec or Fast Burn Heads including HO engines (like 350 HO), SP Series Engines (SP 350) and ZZ Series Engines (ZZ6).

Features:

  • Single plane design with isolated plenum to keep the air charge cooler
  • 4150 square bore mounting flange to adapt most aftermarket throttle body designs
  • Power band: 2500-7500 RPM
  • Height: Front 4.23", Rear 5.33"
  • Port Size: 2.05” height 1.02" width
  • Lower throttle body mounting height to help with hood clearance
  • Black coated fuel rails with bracket assortment allowing different height fuel injectors
  • Fuel injectors are not included
  • Fuel rail designed for maximum throttle lever clearance
  • Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications)
Basic Operating RPM Range 2500-7500 RPM
Brand Holley EFI
Carburetor Flange Square/4150
Carburetor Quantity 1
Carburetor Studs Included No
Category Intake Manifolds
CNC Ported No
Color Natural
Construction Cast
Cylinder Head Port Shape Rectangle
EGR Port No
Emission Code 3
Engine Chevrolet Small Block Gen II (LT Based)
Finish Satin
Flange Style 4150 Square Bore
Front Height 4.18"
Front Maximum Height 4.18 IN
Fuel Injectors Included No
Fuel Inlet 9/16-18"
Fuel Rail(s) Included Yes
Fuel System Type EFI
Gasket Or Seal Included No
Grade Type Performance
Intake Port Gasket(s) Included No
Manifold Type High Rise
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Natural
Product Type EFI Intake Manifold
Rear Height 5.28"
Rear Maximum Height 5.33 IN
Removable Runners No
Removable Top/Lid No
RPM Power Band 2500-7500
Single Or Dual Plane Type Single Plane
Throttle Body Included No
Warranty Limited 90 Day
UPC 090127072707
Part Number 300-263

Emissions
3

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
