Holley Hi-Ram Intake - GM LS3/L92 Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting)

Holley Hi-Ram Intake - GM LS3/L92 Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting)

Part No.: 300-113

Price: $862.95
Quantity:


Holley Hi-Ram Intake - GM LS3/L92 Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting)Holley Hi-Ram Intake - GM LS3/L92 Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting)

Holley Hi-Ram Intake - GM LS3/L92 Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting) Product Description:

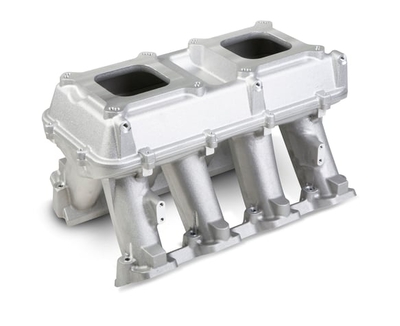

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost-effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications, and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

  • Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Port Size – 2.49” Height x 1.21” Wide
  • Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
  • Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block.
Basic Operating RPM Range 3500-8000 R3
Brand Holley
Carburetor Flange Square/4150
Carburetor Studs Included No
Category Intake Manifolds
Color Natural
Construction Cast
EGR Port No
Emission Code 4
Engine GM LS3/L92
Finish Silver
Flange Style 4150 Square Bore
Front Height 11.08 inch
Front Maximum Height 11.08 IN
Fuel Injectors Included No
Fuel Rail(s) Included No
Fuel System Type Carb
Gasket Or Seal Included No
Grade Type Performance
Intake Port Gasket(s) Included No
Manifold Type Hi-Ram
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Natural
Product Type Intake Manifold
Rear Height 11.08 inch
Rear Maximum Height 11.08 IN
Removable Runners No
RPM Power Band 3500-8000 RPM
Single Or Dual Plane Type Single Plane
Throttle Body Included No
Warranty Limited 90 Day
UPC 090127670699
Part Number 300-113
Emissions
4

This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
