Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6 LS1/LS2/LS6 Cathedral Port EFI Base Only

Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6 LS1/LS2/LS6 Cathedral Port EFI Base Only

Part No.: 300-227

Price: $807.95
Quantity:

Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6 LS1/LS2/LS6 Cathedral Port EFI Base Only Product Description:

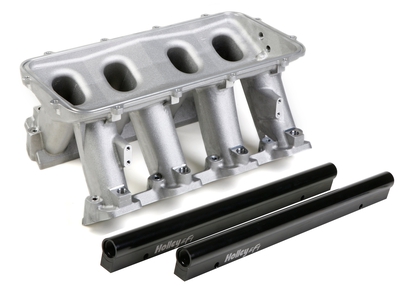

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²

Basic Operating RPM Range3500-8000 RPMBrandHolley EFICategoryAir and Fuel DeliveryIntake ManifoldsCategory FilterIntake ManifoldsColorNaturalConstructionCastEGR PortNoEmission Code4EngineGM LS1/LS2/LS6FinishSilverFuel System TypeEFIGrade TypePerformanceIntake Port Gasket(s) IncludedNoMaterialAluminumNitrous Bung(s) IncludedNoPlenum FinishNaturalProduct TypeIntake Manifold BaseRemovable RunnersNoRPM Power Band3500-8000 RPMSingle Or Dual Plane TypeSingle PlaneThrottle Body IncludedNoType of ComponentLower ManifoldWarrantyLimited 90 DayUPC090127681725Part Number300-227

Emissions
4

This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
