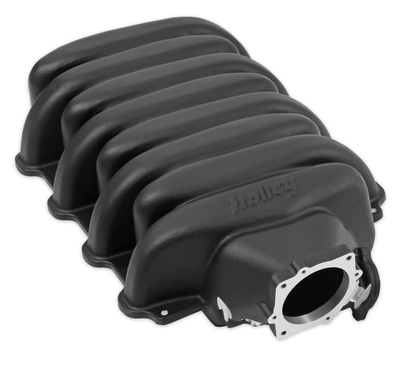

Holley Low-Profile Intake Manifold - Godzilla - Black Powdercoat Fits Ford 7.3L Godzilla Engine Product Description:
Holley's low-profile intake manifold for Ford's 7.3L "Godzilla" engine, when paired with a 20-340/20-340BK oil pan and accessory drive kit, allows for easy installation into vintage vehicles, kit cars, and other space-restricted applications while retaining the factory hood. The design focus for this manifold was equal cylinder distribution and great street manners. This low-profile intake manifold offers a much cleaner alternative to the original plastic intake, provides anywhere from 2 to 3.5-inches of additional clearance, corrects the OE throttle body angle by 55 degrees, and increases the opening to 92mm. With three throttle body options, sturdy cast aluminum construction, a removable lower panel, and long runners to maintain the 7.3-liter's already substantial torque offering, this is a must-have for any "Godzilla" project. • Throttle Body Options: 1) 1986-1993 5.0L Mustang style drive-by-cable throttle bodies, 2) 2020-2023 7.3L drive-by-wire throttle body, and 3) 2020-2023 GT500 drive-by-wire throttle body (requires part #300-903) • Compatible Engine Components: 1) Factory accessories as well as Holley accessory drives (except for #20-380 and #97-409) and 2) Factory fuel rails and Holley #534-265 / #534-266 billet rails Included: Heater delete kit (# 97-425), hardware/o-ring kit (# 300-905), and NPT plugs for unused vacuum ports at rear of manifold (1x 1/8NPT, 1/4 NPT, and 3/8 NPT) Optional items: Heater line adapter (# 300-901), GT500 throttle body adapter (# 300-903), and O-ring replacement kit (# 300-906) Features: - Patent-pending design optimizes hood clearance for engine swap applications with gains ranging from 2 to 3.5-inches
- Robust cast aluminum construction that will withstand high-boost turbocharger and supercharger applications
- Runner design optimizes horsepower and torque in upper RPM range, especially when engine is allowed to breathe with better components (throttle body, cam, etc.)
- Three throttle body options to choose from: OE 7.3L DBW, Fox Body cable driven style, 2020-2023 GT500 (requires part # 300-903)
- Perfect complement to Holley’s Godzilla Accessory Drive and Oiling System (20-320 / 20-320BK / 20-340 / 20-340BK) for fitment into tight engine bays
- Corrects OE throttle body flange angle by 55 degrees for significantly improved clearance and intake pipe routing
- Removable lower intake panel that can be removed for additional porting, nitrous, etc
- Includes 3/8 NPT, 1/4 NPT and 1/8 NPT vacuum ports at rear of manifold
- Includes throttle body gasket and all necessary o-rings and adapters to mount to the engine
- Compatible with OE or Holley accesory drives and OE or Holley Fuel Rails
Basic Operating RPM Range | 2000-6500 R3 | Brand | Holley | Carburetor Studs Included | No | Category | Air and Fuel Delivery | Construction | Cast | EGR Port | No | Emission Code | 3 | Engine | Ford 7.3L Godzilla | Finish | Black Powdercoated | Front Height | 3.625 inch | Front Maximum Height | 3.625 IN | Fuel Injectors Included | No | Fuel Rail(s) Included | No | Fuel System Type | EFI | Gasket Or Seal Included | No | Grade Type | Performance | Intake Port Gasket(s) Included | No | Manifold Type | Low-Profile | Material | Aluminum | Nitrous Bung(s) Included | No | Plenum Finish | Black | Product Type | Intake Manifold | Rear Height | 5.00 inch | Rear Maximum Height | 5 IN | Removable Runners | No | RPM Power Band | 2000-6500 | Single Or Dual Plane Type | Single Plane | Throttle Body Included | No | Throttle Bore | 92mm | Warranty | Limited 90 Day | UPC | 090127136348 | Part Number | 300-900BK | Emissions 3 This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: - 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle The following vehicles are considered Emissions Controlled Vehicles: - 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
|
