Holley Low-Profile Intake Manifold - Godzilla - Natural Finish Fits Ford 7.3L Godzilla Engine

Holley Low-Profile Intake Manifold - Godzilla - Natural Finish Fits Ford 7.3L Godzilla Engine

Part No.: 300-900

Price: $839.95
Quantity:


Holley Low-Profile Intake Manifold - Godzilla - Natural Finish Fits Ford 7.3L Godzilla EngineHolley Low-Profile Intake Manifold - Godzilla - Natural Finish Fits Ford 7.3L Godzilla EngineHolley Low-Profile Intake Manifold - Godzilla - Natural Finish Fits Ford 7.3L Godzilla Engine

Holley Low-Profile Intake Manifold - Godzilla - Natural Finish Fits Ford 7.3L Godzilla Engine Product Description:

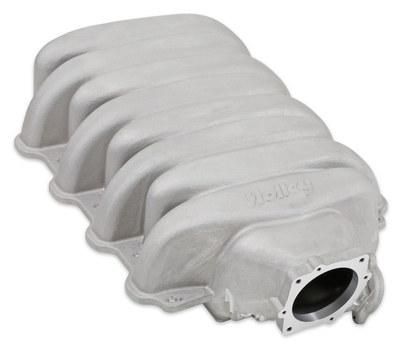

Holley's low-profile intake manifold for Ford's 7.3L "Godzilla" engine, when paired with a 20-340/20-340BK oil pan and accessory drive kit, allows for easy installation into vintage vehicles, kit cars, and other space-restricted applications while retaining the factory hood. The design focus for this manifold was equal cylinder distribution and great street manners. This low-profile intake manifold offers a much cleaner alternative to the original plastic intake, provides anywhere from 2 to 3.5-inches of additional clearance, corrects the OE throttle body angle by 55 degrees, and increases the opening to 92mm. With three throttle body options, sturdy cast aluminum construction, a removable lower panel, and long runners to maintain the 7.3-liter's already substantial torque offering, this is a must-have for any "Godzilla" project. • Throttle Body Options: 1) 1986-1993 5.0L Mustang style drive-by-cable throttle bodies, 2) 2020-2023 7.3L drive-by-wire throttle body, and 3) 2020-2023 GT500 drive-by-wire throttle body (requires part #300-903) • Compatible Engine Components: 1) Factory accessories as well as Holley accessory drives (except for #20-380 and #97-409) and 2) Factory fuel rails and Holley #534-265 / #534-266 billet rails Included items: Heater delete kit (# 97-425), hardware/o-ring kit (# 300-905), and NPT plugs for unused vacuum ports at rear of manifold (1x 1/8NPT, 1/4 NPT, and 3/8 NPT) Optional items: Heater hardline line adapter (# 300-901), GT500 throttle body adapter (# 300-903), and O-ring replacement kit (# 300-906)

Features:

  • Patent-pending design optimizes hood clearance for engine swap applications with gains ranging from 2 to 3.5-inches
  • Robust cast aluminum construction that will withstand high-boost turbocharger and supercharger applications
  • Three throttle body options to choose from: OE 7.3L DBW, Fox Body cable driven style, 2020-2023 GT500 (requires part # 300-903)
  • Perfect complement to Holley’s Godzilla Accessory Drive and Oiling System (20-320 / 20-320BK / 20-340 / 20-340BK) for fitment into tight engine bays
  • Removable lower intake panel that can be removed for additional porting, nitrous, etc
  • Runner design optimizes horsepower and torque in upper RPM range, especially when engine is allowed to breathe with better components (throttle body, cam, etc.)
  • Includes throttle body gasket and all necessary o-rings and adapters to mount to the engine
  • Compatible with OE or Holley accesory drives and OE or Holley Fuel Rails
  • Corrects OE throttle body flange angle by 55 degrees for significantly improved clearance and intake pipe routing
  • Includes 3/8 NPT, 1/4 NPT and 1/8 NPT vacuum ports at rear of manifold
Basic Operating RPM Range 2000-6500 R3
Brand Holley
Carburetor Studs Included No
Category Air and Fuel Delivery
Construction Cast
EGR Port No
Emission Code 3
Engine Ford 7.3L Godzilla
Finish Natural Cast
Front Height 3.625 inch
Front Maximum Height 3.625 IN
Fuel Injectors Included No
Fuel Rail(s) Included No
Fuel System Type EFI
Gasket Or Seal Included No
Grade Type Performance
Intake Port Gasket(s) Included No
Manifold Type Low-Profile
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Natural
Product Type Intake Manifold
Rear Height 5.00 inch
Rear Maximum Height 5 IN
Removable Runners No
RPM Power Band 2000-6500
Single Or Dual Plane Type Single Plane
Throttle Body Included No
Throttle Bore 92mm
Warranty Limited 90 Day
UPC 090127136331

Emissions
3

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
