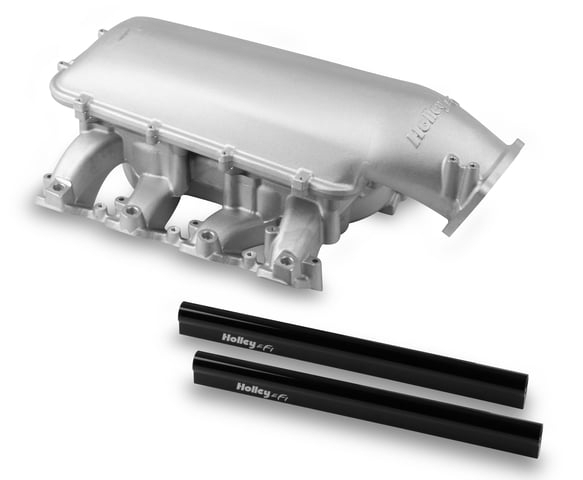

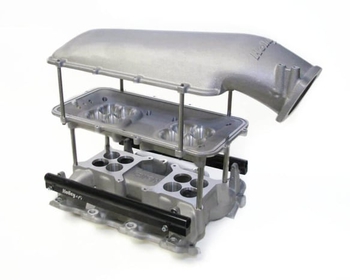

The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 105MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or naturally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems. *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Basic Operating RPM Range2500-7000 RPMBrandHolley EFICategoryAir and Fuel DeliveryIntake ManifoldsCategory FilterIntake ManifoldsColorSilverConstructionCastEGR PortNoEmission Code4EngineGM LS3/L92FinishSilverFlange StyleEFIFront Height10.44 inchFront Maximum Height10.44 INFuel System TypeEFIGrade TypePerformanceIntake Port Gasket(s) IncludedNoManifold TypeMid RiseMaterialAluminumNitrous Bung(s) IncludedNoPlenum FinishNaturalProduct TypeIntake ManifoldRear Height9.99 inchRear Maximum Height9.99 INRecommended UseForced InductionRemovable RunnersNoRPM Power Band2500-7000 RPMSingle Or Dual Plane TypeSingle PlaneThrottle Body Bore Diameter105 MMThrottle Body IncludedNoWarrantyLimited 90 DayUPC090127743805Part Number300-128
4
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
