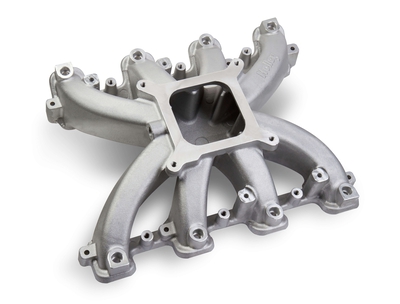

Holley Single Plane EFI Intake - GM LS3/L92 Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads

Holley Single Plane EFI Intake - GM LS3/L92 Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads

Part No.: 300-136

Price: $424.95
Quantity:

Holley Single Plane EFI Intake - GM LS3/L92 Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads Product Description:

Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads

Features:

  • 2500-7000 RPM power band
  • 4150 Square bore flange
  • Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
  • Minimum carb flange height - fit in vehicles with minimum hood modifications
  • Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
  • Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
  • Weight - 11.5 lbs.
  • Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
  • Port size - 2.50" height x 1.15" wide
  • Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
  • This manifold will not work with factory fuel rails and requires the use of Holley Fuel Rail Kit 534-218
Basic Operating RPM Range 2500-7000 RPM
Brand Holley EFI
Carburetor Flange Square/4150
Category Air and Fuel Delivery
Intake Manifolds
Category Filter Intake Manifolds
Color Silver
Construction Cast
EGR Port No
Emission Code 3
Engine GM LS3/L92
Finish Silver
Flange Style 4150 Square Bore
Front Height 5.417 inch
Front Maximum Height 5.417 IN
Fuel System Type EFI
Grade Type Performance
Intake Port Gasket(s) Included No
Manifold Type Single Plane
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Natural
Product Type Intake Manifold
Rear Height 5.417 inch
Rear Maximum Height 5.417 IN
Recommended Use Forced Induction
Removable Runners No
RPM Power Band 2500-7000 RPM
Single Or Dual Plane Type Single Plane
Throttle Body Included No
Warranty Limited 90 Day
UPC 090127687741
Part Number 300-136
Emissions
3

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
