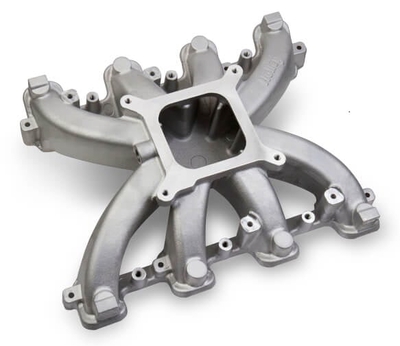

Holley Single Plane Intake - GM LS1/LS2/LS6 Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads Product Description:
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads Features: - 2500-7000 RPM power band
- 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fits in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.
- Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange
- Port size - 2.659" height x .918" wide
- Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
| Barrels | 4 | | Basic Operating RPM Range | 2500-7000 R3 | | Brand | Holley | | Carburetor Flange | Square/4150 | | Carburetor Studs Included | No | | Category | Air and Fuel Delivery | | Intake Manifolds | | Category Filter | Intake Manifolds | | Color | Natural | | Construction | Cast | | EGR Port | No | | Emission Code | 3 | | Engine | GM LS1/LS2/LS6 | | Finish | Silver | | Flange Style | 4150 Square Bore | | Front Height | 4.95 inch | | Front Maximum Height | 4.95 IN | | Fuel Injectors Included | No | | Fuel Rail(s) Included | No | | Fuel System Type | Carb | | Gasket Or Seal Included | No | | Grade Type | Performance | | Intake Port Gasket(s) Included | No | | Manifold Type | Single Plane | | Material | Aluminum | | Nitrous Bung(s) Included | No | | Plenum Finish | Natural | | Product Type | Intake Manifold | | Rear Height | 4.95 inch | | Rear Maximum Height | 4.95 IN | | Removable Runners | No | | RPM Power Band | 2500-7000 RPM | | Single Or Dual Plane Type | Single Plane | | Throttle Body Included | No | | Warranty | Limited 90 Day | | UPC | 090127687734 | | Part Number | 300-132 | |
