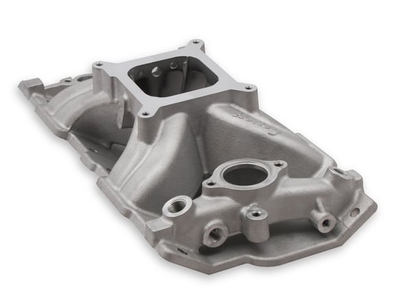

Holley Single Plane Intake Manifold- Chevy Small Block V8 Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads

Holley Single Plane Intake Manifold- Chevy Small Block V8 Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads

Part No.: 300-261

Price: $371.95
Quantity:

Holley Single Plane Intake Manifold- Chevy Small Block V8 Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads Product Description:

The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.

Features:

  • Single Plane with Isolated Plenum
  • Square Bore Carburetor Mounting Flange
  • Isolated Water cross-over
  • Power band: 2500-7500 RPM
  • Height: Front 4.18", Rear 5.28"
  • Port Size: 1.92” height 1.20" width
Barrels 4
Basic Operating RPM Range 2500-7500 R3
Brand Holley
Carburetor Studs Included No
Category Air and Fuel Delivery
Intake Manifolds
Category Filter Intake Manifolds
Color Natural
Construction Cast
EGR Port No
Emission Code 3
Engine Chevrolet Small Block Gen I
Finish Satin
Front Height 4.18"
Front Maximum Height 4.18 IN
Fuel Injectors Included No
Fuel Rail(s) Included No
Fuel System Type Carb
Gasket Or Seal Included No
Grade Type Performance
Intake Port Gasket(s) Included No
Manifold Type High Rise
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Natural
Product Type Intake Manifold
Rear Height 5.28"
Rear Maximum Height 5.28 IN
Removable Runners No
RPM Power Band 2500-7500 RPM
Single Or Dual Plane Type Single Plane
Throttle Body Included No
Warranty Limited 90 Day
UPC 090127052136
Part Number 300-261
Emissions
3

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
